• Wheels, 4 - 17" x 7" (43.2 cm x 17.8 cm) steel includes steel spare (Requires **13405 models.)
• Tires, front P245/70R17 all-season, blackwall (Requires **13405 models standard tire. Available with (ZX9) spare tire delete.)
• Tires, rear P245/70R17 all-season, blackwall (Requires **13405 models standard tire.)
• Tire, spare P245/70R17 all-season, blackwall (Requires **13405 models standard tire.)
• Door, swing-out passenger-side, 60/40 split
• Bumpers, front and rear painted Black with step-pad (Not available with (ZR7) Chrome Appearance Package.)
• Grille, Black composite with single rectangular halogen headlamps (Not available with (ZR7) Chrome Appearance Package.)
• Headlamps, single halogen (Not available with (ZR7) Chrome Appearance Package.)
• Mirrors, outside manual, Black
• Glass, Solar-Ray light-tinted, all windows
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front

• Audio system, radio provisions only. Includes alarm warning chimes, radio wiring harness, radio antenna and 2 front door speakers

• Seats, front bucket with vinyl trim and outboard head restraints (Requires (**W) interior trim.)

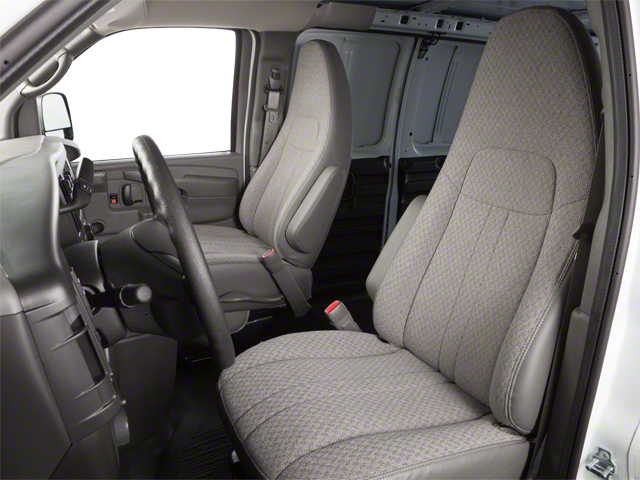

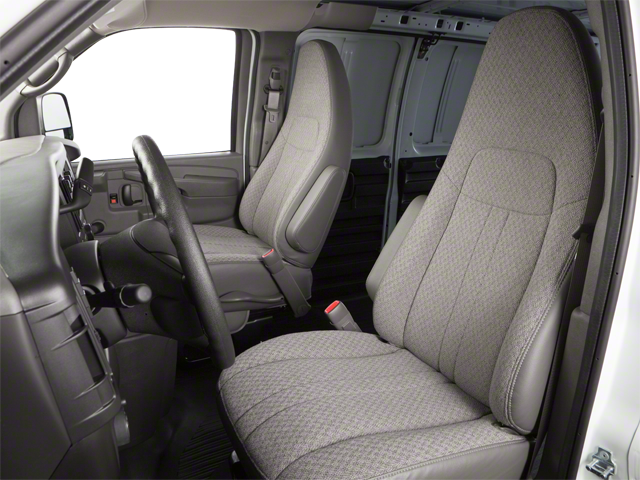

• Seating arrangement, driver and front passenger high-back buckets, adjustable with head restraints and vinyl or cloth trim
• Air conditioning, single-zone manual
• Floor covering, full-length Black rubberized-vinyl (Not available with (YF2) Ambulance Package or (RFM) rear floor covering delete.)

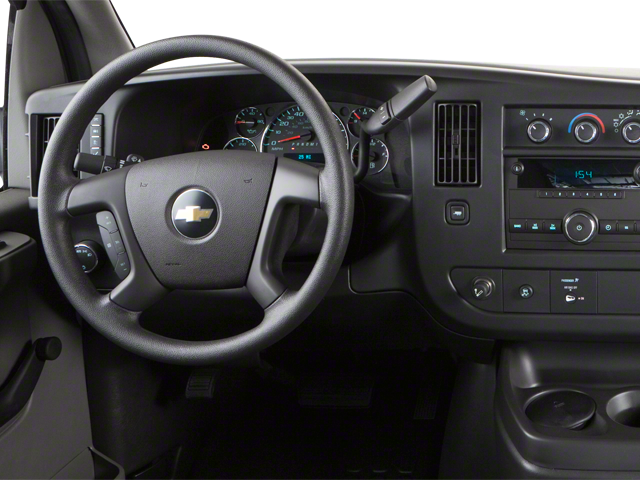

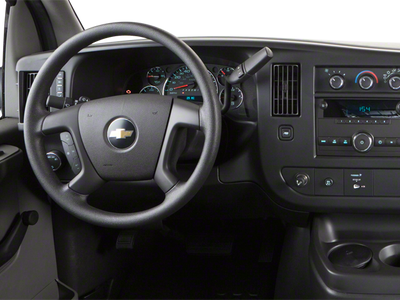

• Steering wheel, steel sleeve column with theft-deterrent locking feature, Black
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Compass 8-point digital located in the Driver Information Center (Included and only available with (TR9) auxiliary lighting.)
• Tow/haul mode selector, instrument panel-mounted
• Theft-deterrent system, vehicle, PASS-Key III
• Defogger, side windows
• Headliner, cloth, over driver and passenger
• Visors, driver and front passenger, cloth, padded
• Assist handle, front passenger
• Lighting, auxiliary with reading and underhood lights (Standard on **13405 models. Includes (U80) 8-point digital compass. Included with (PCR) Express Access Plus Package. Not available with (YF2) Ambulance Package.)
• Lighting, interior with 2 dome lights, defeat switch and door handle-activated switches

• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch on models **23*05 and **33*05. Not available with (ZX1) driver only high-back bucket seat or (AJ3) driver-side only frontal air bag. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Air bags, head/side-curtain (Standard on **13405 Models. Requires (AK5) driver and right-front passenger air bags and (TR9) auxiliary lighting. Not available with (AJ3) driver-side only frontal air bag and SEO option (5L3) interior trim panels. Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Tire Pressure Monitoring System (does not apply to spare tire)

SEATING ARRANGEMENT, DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS, ADJUSTABLE

• with head restraints and vinyl or cloth trim (STD)

GLASS, SOLAR-RAY DEEP-TINTED

• (all windows except light-tinted glass on windshield and driver-and front passenger-side glass)

WINDOWS, POWER

• (Included and only available with (ZQ2) Convenience Package.)

STEERING COLUMN, TILT

• Tilt-steering column without cruise control.

SEATS, FRONT BUCKET WITH CUSTOM CLOTH TRIM

• head restraints and inboard armrests

BODY, STANDARD

• (STD)

PREFERRED EQUIPMENT GROUP

• includes Standard Equipment

DOOR, SWING-OUT PASSENGER-SIDE, 60/40 SPLIT

• (STD)

REMOTE KEYLESS ENTRY

• with 2 transmitters and remote panic button

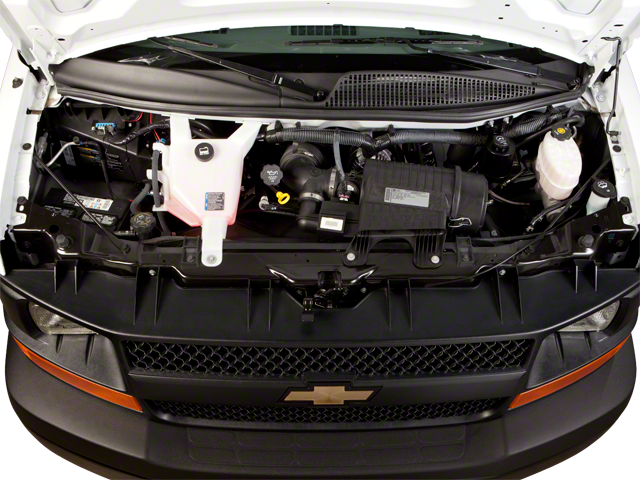

ENGINE, VORTEC 5.3L V8 SFI FLEXFUEL

• (310 hp [231.1 kW] @ 5200 rpm
• 334 lb-ft of torque [450.9 N-m] @ 4500 rpm)

AIR CONDITIONING, SINGLE-ZONE MANUAL

• (STD)

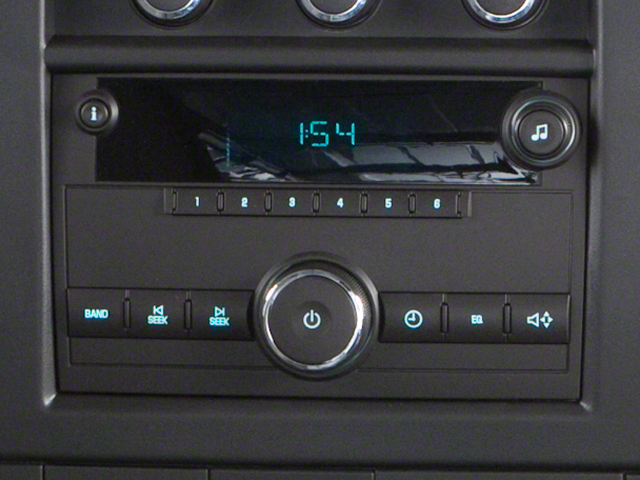

AUDIO SYSTEM, AM/FM STEREO WITH CD PLAYER

• seek-and-scan
• digital clock
• TheftLock
• random select and 2 front door speakers

TIRE, SPARE P245/70R17 ALL-SEASON, BLACKWALL

• (STD)

TRANSMISSION, 4-SPEED AUTOMATIC, ELECTRONICALLY CONTROLLED

• with overdrive
• tow/haul mode and internal transmission oil cooler (STD)

• REAR AXLE 3.42 RATIO
• GLASS SWING-OUT REAR CARGO DOOR WINDOWS
• DEFOGGER REAR-WINDOW ELECTRIC
• SEATING ARRANGEMENT DRIVER AND FRONT PASSENGER HIGH-BACK BUCKETS ADJUSTABLE with head restraints and vinyl or cloth trim (STD)
• GLASS SOLAR-RAY DEEP-TINTED (all windows except light-tinted glass on windshield and driver-and front passenger-side glass)
• WINDOWS POWER (Included and only available with (ZQ2) Convenience Package.)
• STEERING COLUMN TILT Tilt-steering column without cruise control.
• SEATS FRONT BUCKET WITH CUSTOM CLOTH TRIM head restraints and inboard armrests
• BODY STANDARD (STD)
• PREFERRED EQUIPMENT GROUP includes Standard Equipment
• ALTERNATOR 145 AMPS
• DOOR SWING-OUT PASSENGER-SIDE 60/40 SPLIT (STD)
• GLASS FIXED REAR DOORS
• REMOTE KEYLESS ENTRY with 2 transmitters and remote panic button
• DOOR LOCKS POWER WITH LOCK-OUT PROTECTION
• PAINT SOLID
• CONVENIENCE PACKAGE POWER WINDOWS AND DOOR LOCKS
• ENGINE VORTEC 5.3L V8 SFI FLEXFUEL (310 hp [231.1 kW] @ 5200 rpm 334 lb-ft of torque [450.9 N-m] @ 4500 rpm)
• (PPC) TRIM PANEL DELETE REAR SIDE AND REAR DOORS
• MIRROR INSIDE REARVIEW MANUAL DAY/NIGHT
• SUMMIT WHITE
• AIR CONDITIONING SINGLE-ZONE MANUAL (STD)
• AUDIO SYSTEM AM/FM STEREO WITH CD PLAYER seek-and-scan digital clock TheftLock random select and 2 front door speakers
• TIRE SPARE P245/70R17 ALL-SEASON BLACKWALL (STD)
• MEDIUM PEWTER CUSTOM CLOTH SEAT TRIM
• TRANSMISSION 4-SPEED AUTOMATIC ELECTRONICALLY CONTROLLED with overdrive tow/haul mode and internal transmission oil cooler (STD)

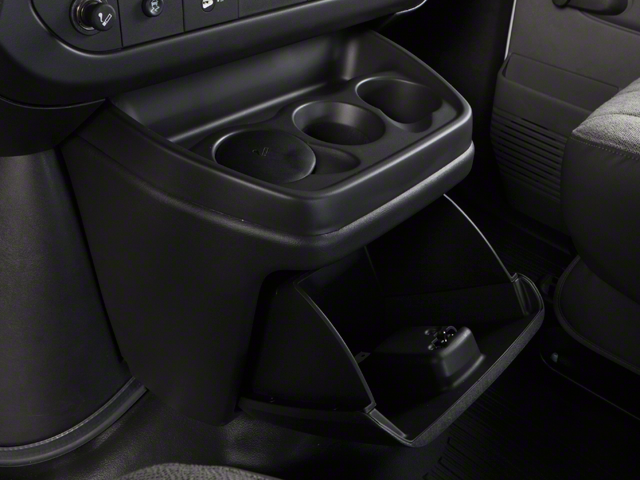

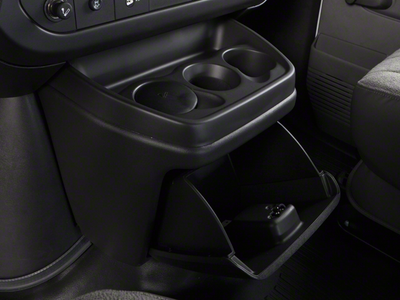

• CONSOLE ENGINE COVER WITH SWING-OUT STORAGE BIN
• Rear Wheel Drive
• Power Steering
• ABS
• 4-Wheel Disc Brakes
• Steel Wheels
• Tires - Front All-Season
• Tires - Rear All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Intermittent Wipers
• Bucket Seats
• Bucket Seats
• A/C
• Tire Pressure Monitor
• Trip Computer
• Immobilizer
• Power Outlet
• Front Reading Lamps
• Daytime Running Lights
• Driver Air Bag
• Passenger Air Bag
• Front Head Air Bag
• Tire Pressure Monitor

• Vehicle
• Rear Door Type: Dual Swing-out
• Mileage
• Fuel Economy Est-Combined (MPG): 15
• Fuel Economy Est-Combined (MPG): 17
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 18
• EPA Fuel Economy Est - Hwy (MPG): 20
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Total Cooling System Capacity (qts): 12.6
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4000
• Curb Weight - Front (lbs): 2778
• Curb Weight - Rear (lbs): 2050
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 12000
• Gross Combined Wt Rating (lbs): 9500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4400
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 440
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6700
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1005
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 660
• Maximum Trailering Capacity (lbs): 6700
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 3600
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.2
• Tires
• Front Tire Order Code: XPR
• Rear Tire Order Code: YPR
• Spare Tire Order Code: ZPR
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2004
• Rear Tire Capacity (lbs): 2004
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr-Assisted
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: LH Midship Inboard
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 81.5
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.7
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 7.6
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.1
• Step Up Height - Side (in): 20.9

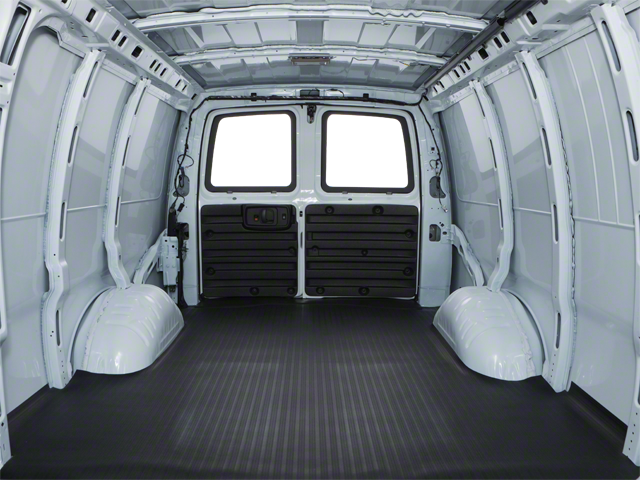

• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 127.8
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.7
• Cargo Box (Area) Height (in): 51.9
• Cargo Volume (ft³): 225.1
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Summary

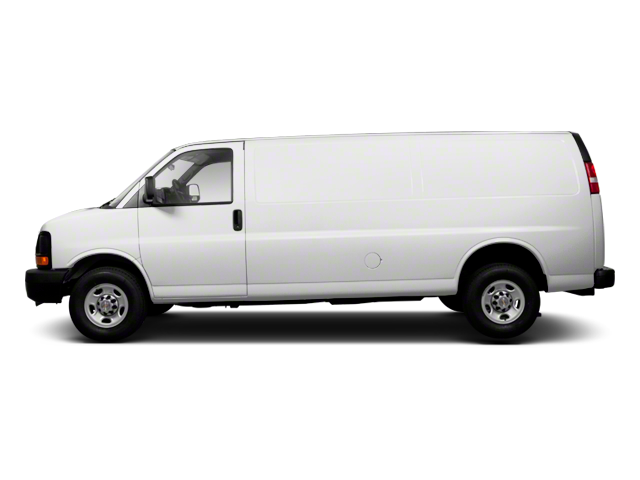

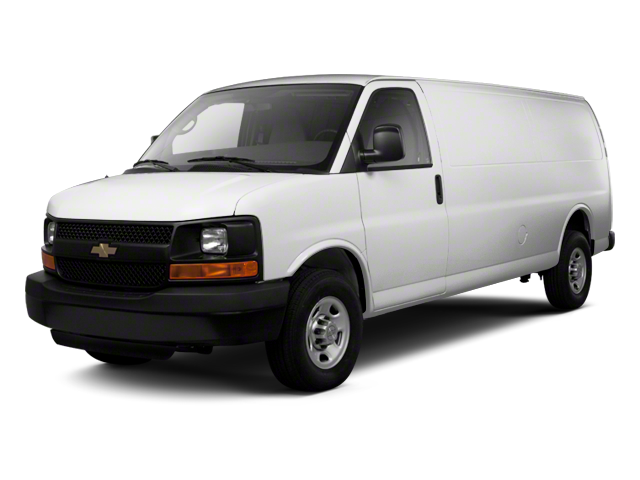

• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: 1500 Cargo Van 135" WB
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 2
• EPA Greenhouse Gas Score: 3
• Tons/yr of CO2 Emissions @ 15K mi/year: 11.0
